DTC SMOOTH B51 STANDARD PUSH-TO-OPEN DRAWER KIT 83 X 400MM (WHITE)

SKU
B514004A

COMPLETE DRAWER SET WITH EASY FIX FRONT BRACKETS:

  • TOOL-FREE FRONT BRACKETS INCLUDED
  • SYNCHRONISED, FULL EXTENSION SLIDES
  • DYNAMIC LOAD CAPACITY: 40KG
  • FINISH: WHITE
  • TOOL-FREE ASSEMBLY AND REMOVAL OF DRAWER
  • PUSH-TO-OPEN OPERATION
  • 2-DIMENSIONAL FRONT ADJUSTMENT
  • BOTTOM FIXING WITH SCREWS OR KNOCK IN CLAWS
  • HANDLE-LESS SOLUTION

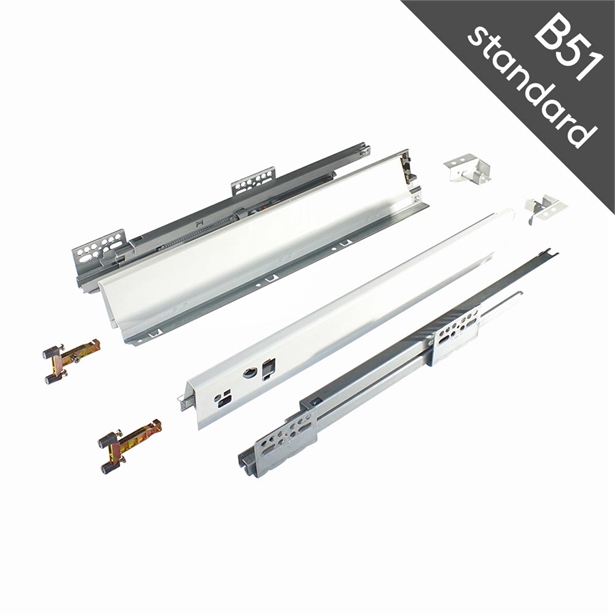

KIT INCLUDES:

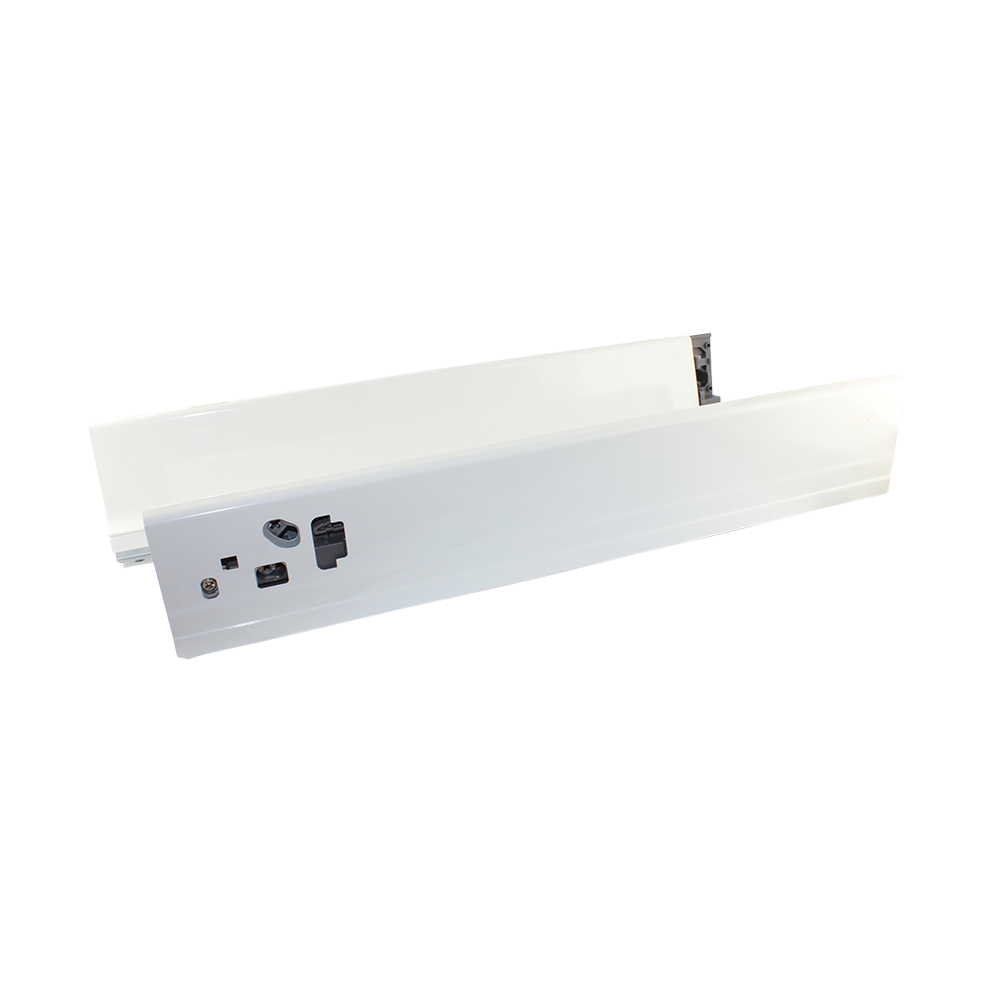

  • LEFT & RIGHT PROFILE

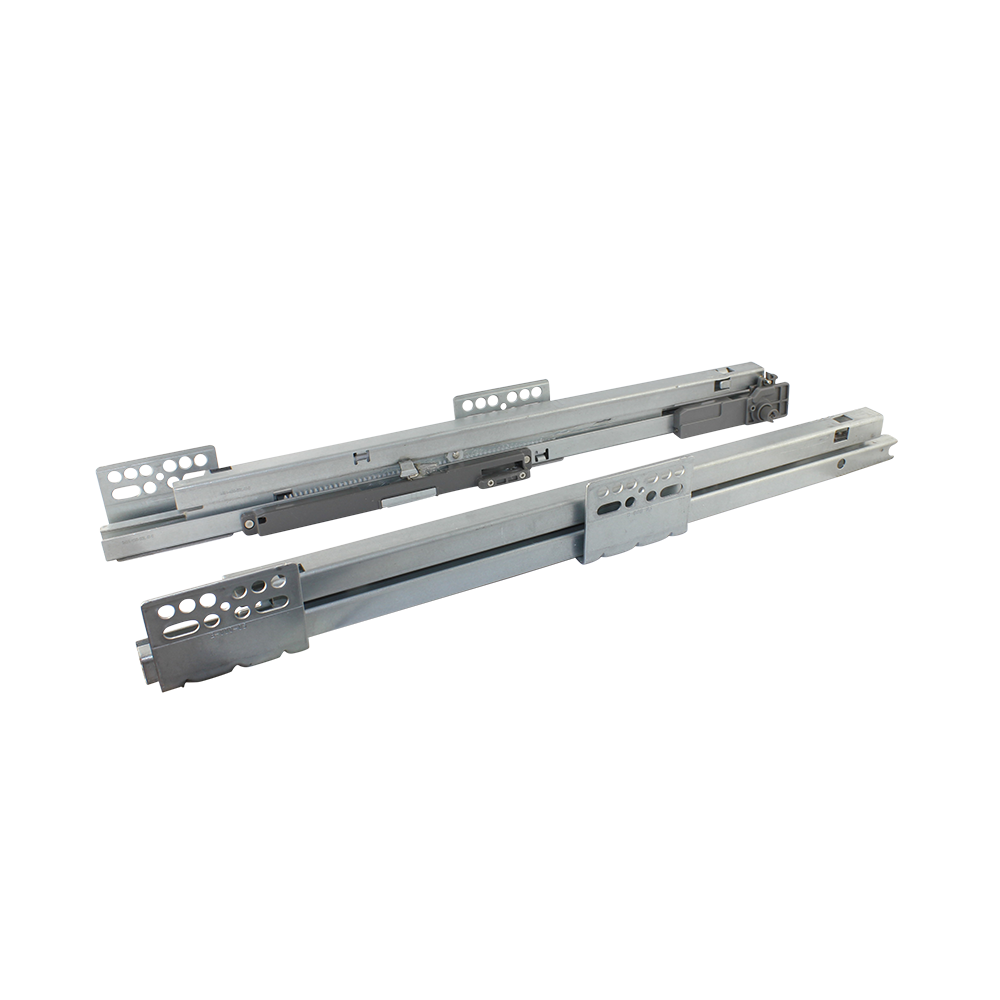

  • LEFT & RIGHT PUSH-TO-OPEN RUNNER
  • LEFT & RIGHT OUTSIDE COVER CAP

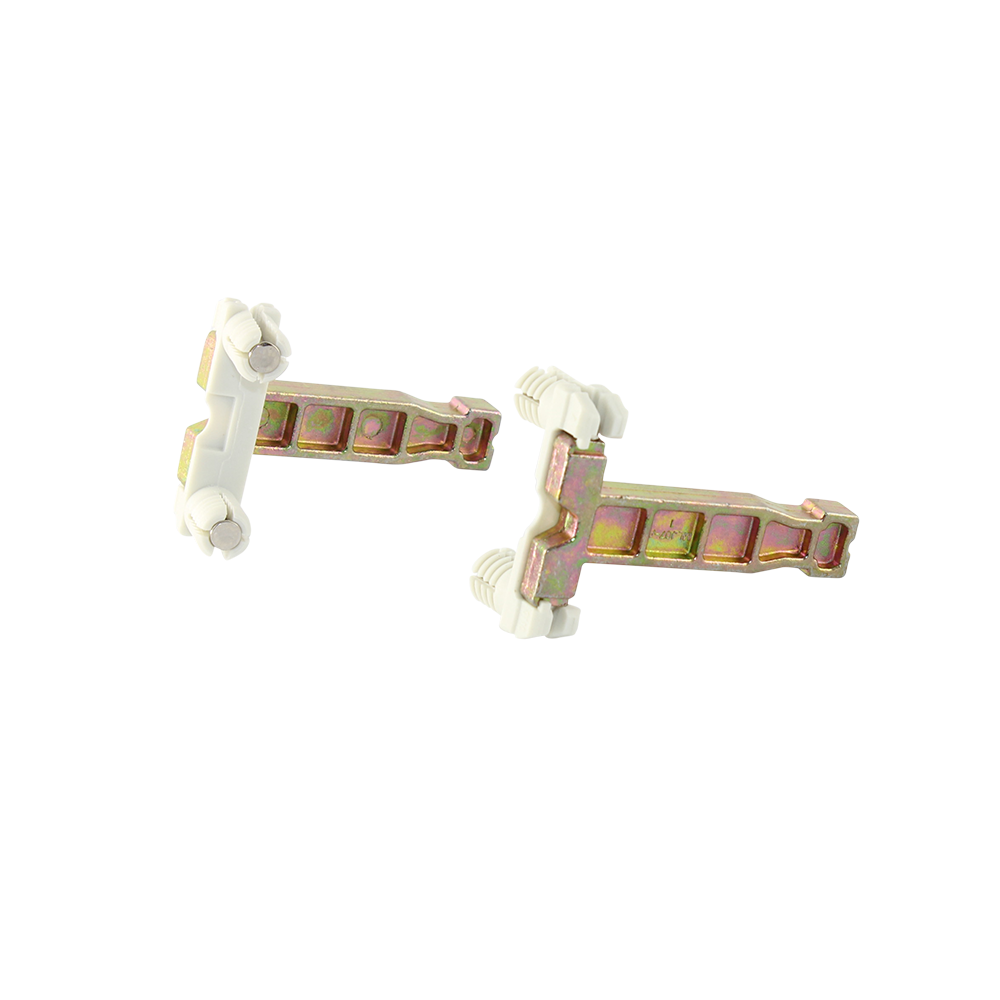

  • UNIVERSAL LEFT / RIGHT EASY FIX FRONT BRACKET

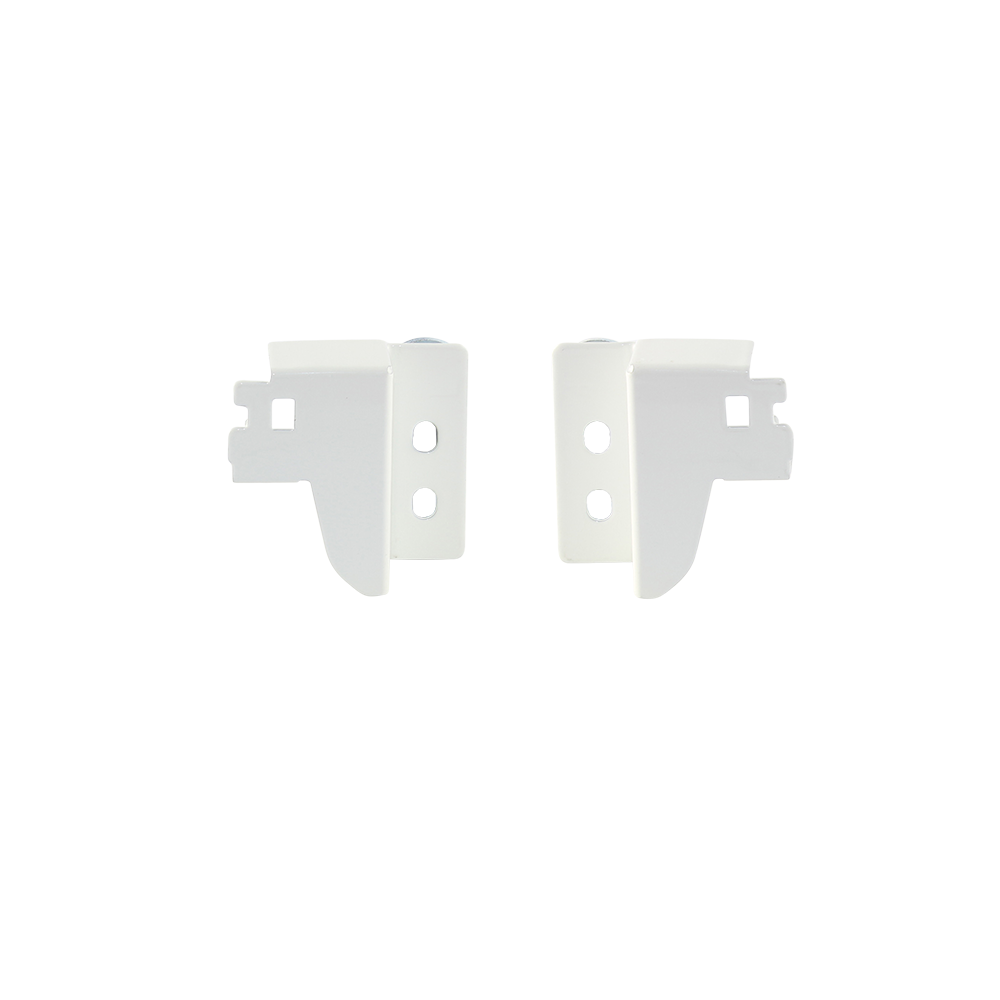

  • LEFT & RIGHT 83MM BACK BRACKET
  • BAG OF SCREWS
  • PRINTED INSTALLATION INSTRUCTIONS

Colour : White

Capacity : 40KG

Height : 83mm

Length : 400mm

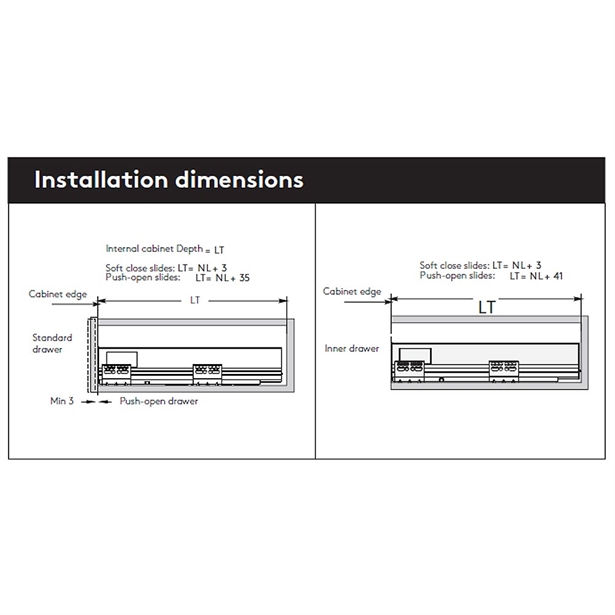

Minimum Cabinet Depth : 45mm

Range : DTC

Type : Drawer Kits

UOM : SET
