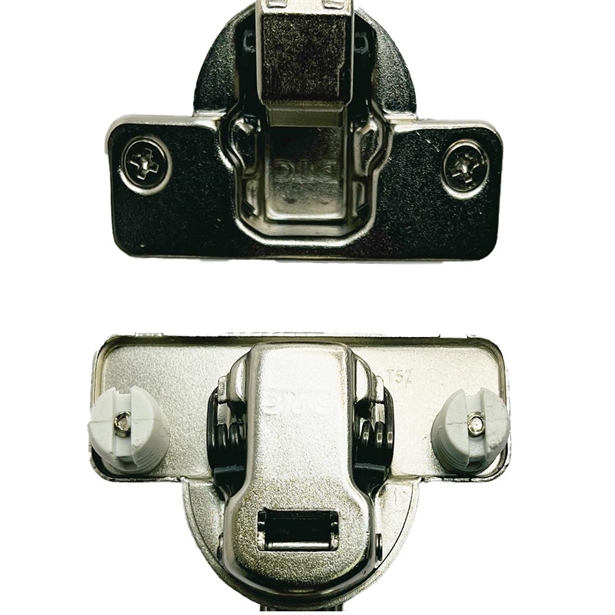

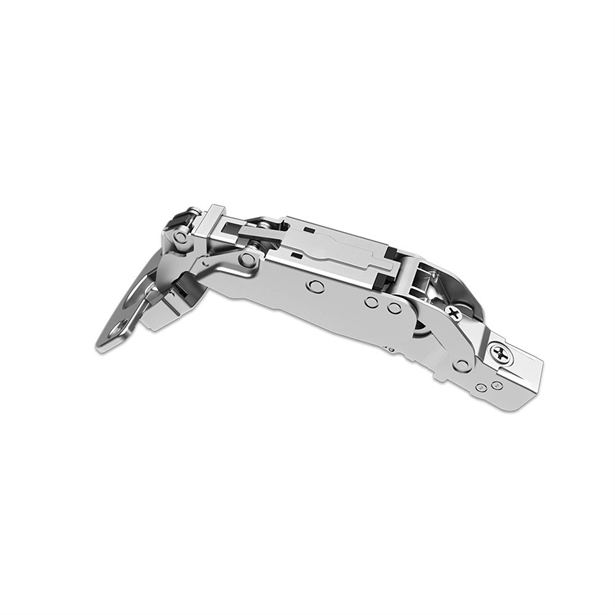

DTC 160° AWSO HINGE, FULL OVERLAY, KNOCK IN, 45/9.5 B PATTERN, SOFT CLOSE
SKU
DTC81A805NFA
CAN ALSO BE PURCHASED IN A BOX QUANTITY OF 100, OR PALLET QUANTITY OF 2,400
USE WITH AWSO PLATES
8MM DOWEL
12.4MM HINGE CUP DEPTH
Colour : Nickel Plated
Angle : 160°
Door Overlay : Full Overlay

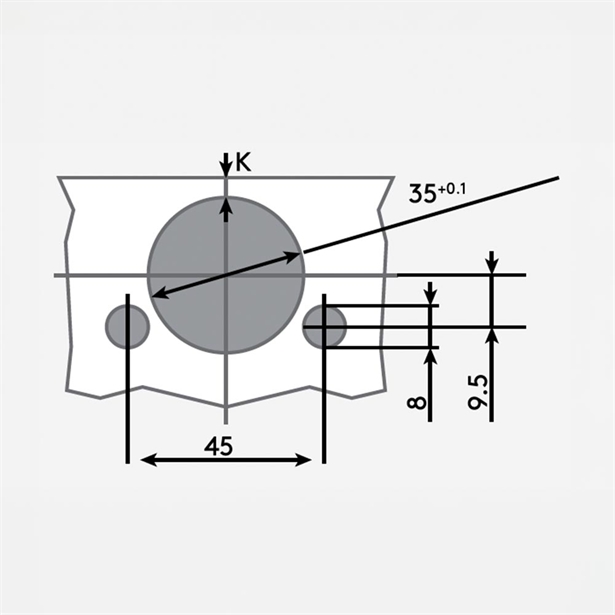

Drilling Pattern : 45 / 9.5 / 8
Range : DTC
Type : Hinges
UOM : EA
